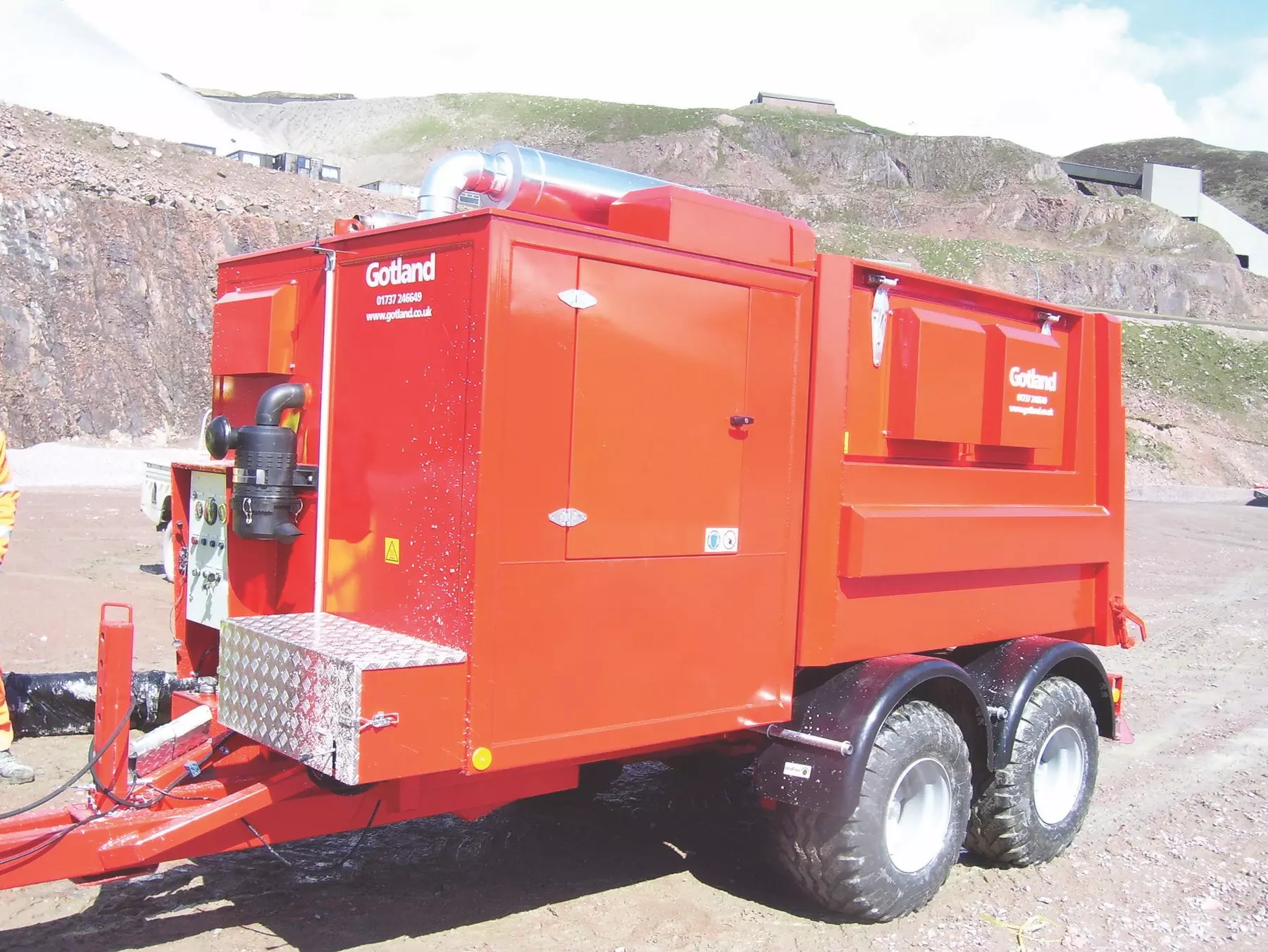

Fully enclosed hopper mounted on trailer
TrailerVac is a semi-mobile electrical or diesel powered vacloader equipped with built-in hydraulic tipping system. It can be towed/connected to, for example a tractor. It is perfect for both wet and dry materials and most often used in industrial applications where significant collection of dust is required. Oil-free and self-cleaning.
Overview
| Suction | Dry Materials | ||
| Blow | Wet materials | ||
| Mobile | Indoor | ||
| Power | 48 / 58 kW | Outdoor |
Weight and Dimensions
| Complete unit | 5,200 - 5,400kg |
| Total Unit Lengths | 5,700mm |
| Total width | 2,100 - 2455mm |
| Height | 2700 - 3185mm |
Technical Information
| Discharge | Built-in hydraulic tipping system |
| Vacuum Pump | Roots style three-lobe rotary pump |
| Max Vacuum | 500 - 800 mbar |
| Suction Inlet | 152mm |
| Air Volume | 3,250 / 6,650 |
| Power | 48 / 58 kW |
| Voltage Frequency | N/A (Diesel) |
| Material Container Volume | 3.5 - 8.5m3 |
| Power Source | Electric or Diesel |
| Container Tipping | Hydraulic cylinder, single acting system. Hydraulically operated and locked tailgate as add-on. |
| Standard Filter Class | L, M, IEC. HEPA optional. Self-cleaning. |
| Safety Filter Surface | 18 - 24m2 |
| ATEX | Optional |
| IECEx | Optional |
