Direct waste to skips, bins, bags or conveyors

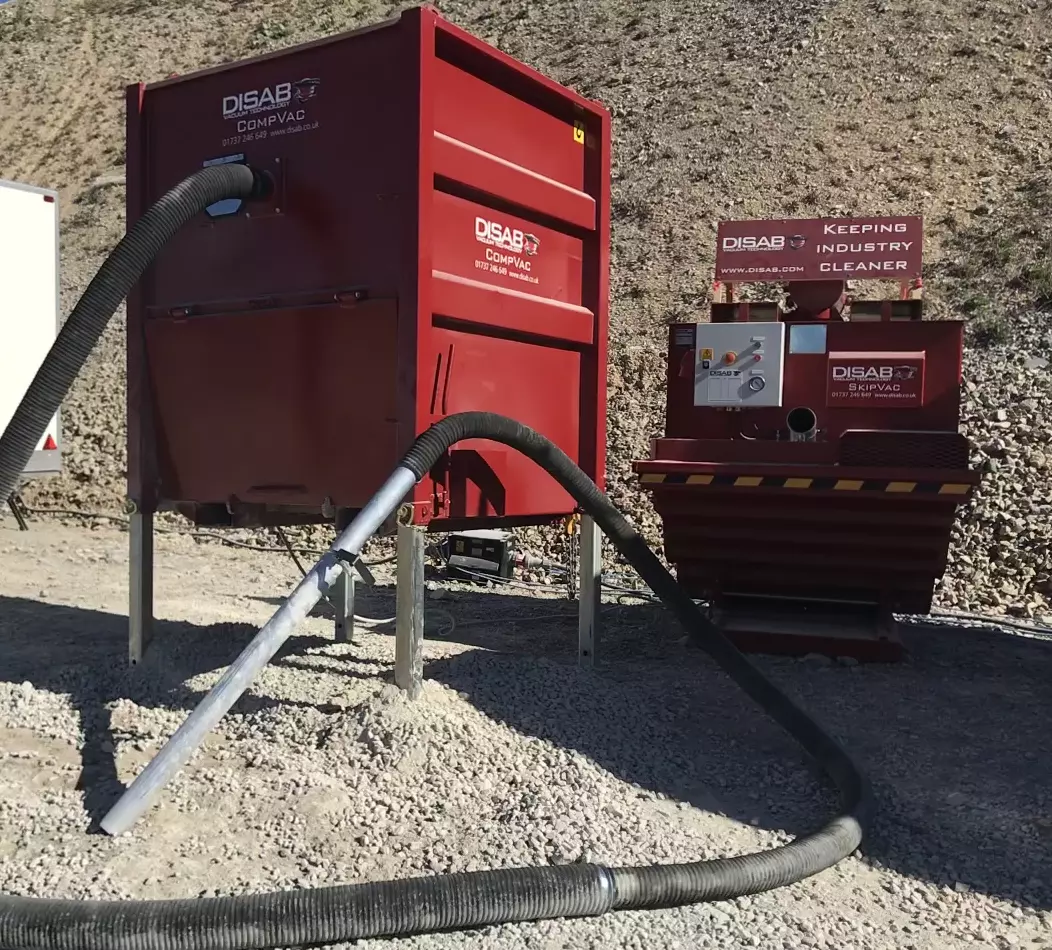

CompVac is a semi-mobile, electrical powered vacuum unit mounted on a rigid stand equipped with retractable legs. It is designed for applications requiring collection of material into an open skip or container. It can easily be manoeuvred using a standard forklift truck or crane. Suitable for temporary cleaning needs in any industrial application. Oil-free. Self-cleaning filter.



Suction Dry Materials
Blow Wet materials
Mobile Indoor
Power 16.5 kW Outdoor

Weight and Dimensions

Complete unit 1,030kg
Total Unit Lengths 1,430mm
Total width 1,430mm
Height 2,955mm

Technical Information

Discharge Into any type of open skip or container
Vacuum Pump Oil-free side channel blower
Max Vacuum 400 mbar
Suction Inlet 108mm
Air Volume 1,100
Power 16.5 kW
Voltage Frequency 32 amp / 415 V
Material Container Volume 0.9m3
Power Source Electric
Container Tipping 0.9m3 manual discharge hopper
Standard Filter Class L, M, IEC. HEPA optional. Self-cleaning.
Safety Filter Surface 10m2
ATEX Optional
