Enclosed and mounted on self-tipping skip

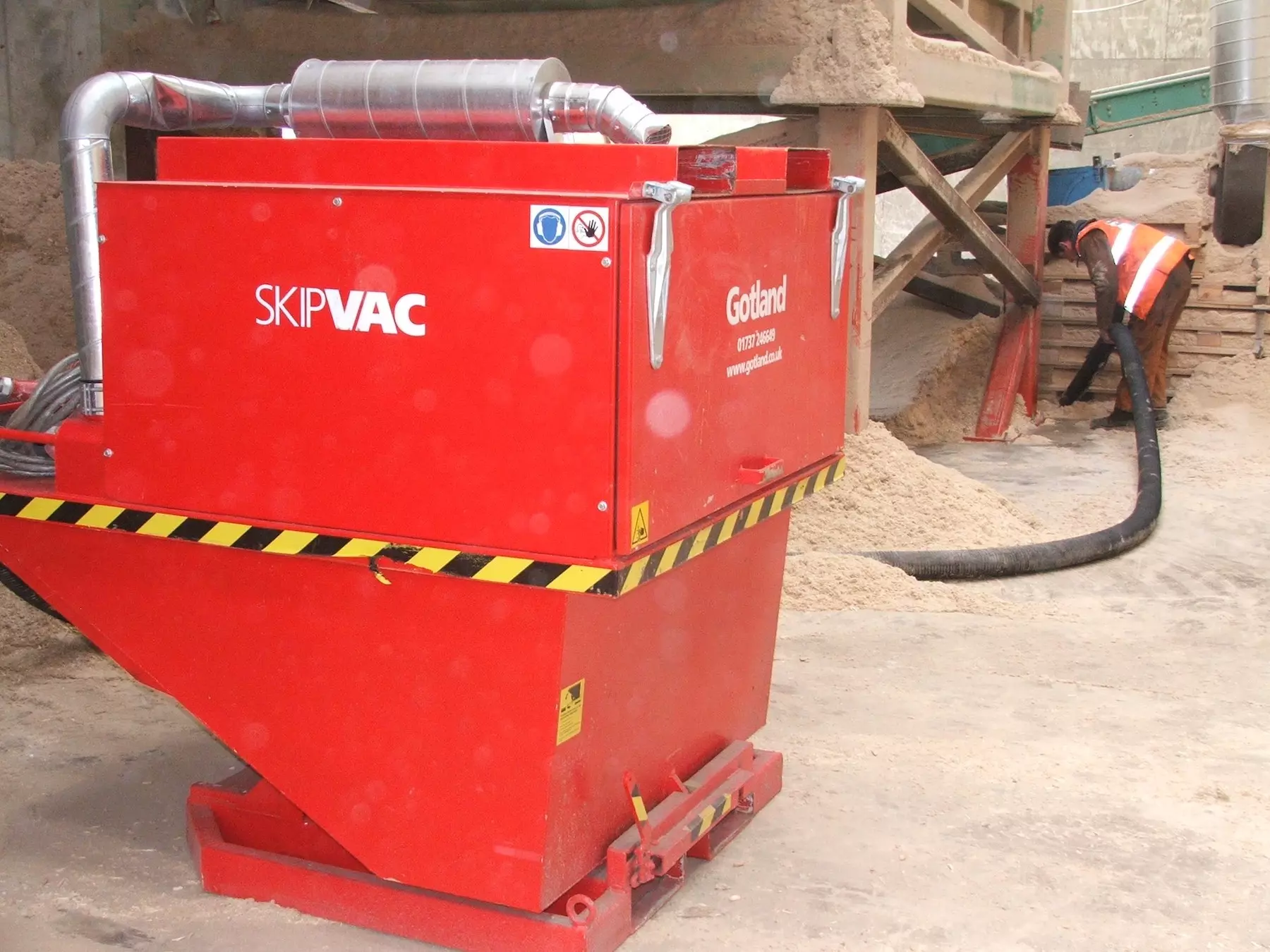

SkipVac is a semi-mobile, electrical powered, small forklift handled vacuum unit suitable for medium vacuum duties. It is easily manoeuvred using a standard forklift truck or crane. It is equipped with a self-tipping bin for easy discharge, and suitable for cleaning and bulk suction in any industrial application that requires flexibility, mobility, reliability, and low noise level. Oil-free.

Case Study: CSR Monier

Overview

Suction Dry Materials
Blow Wet materials
Mobile Indoor
Power 12.5 kW Outdoor

Weight and Dimensions

Complete unitss 910kg
Total Unit Lengths 1,750mm
Total width 1,390mm
Height 1,680mm

Technical Information

Discharge Self-tipping bin skip
Vacuum Pump Oil-free side channel blower
Max Vacuum 300 mbar
Suction Inlet 108mm
Air Volume 1,100
Power 12.5 kW
Voltage Frequency 32 amp / 415 V
Material Container Volume 1m3
Power Source Electric
Container Tipping Manual operated self-tipping skip
Standard Filter Class L, M, IEC. HEPA optional.
Safety Filter Surface 5m2
ATEX Optional
IECEx N/A
