Direct waste to skips, bins, bags or conveyors

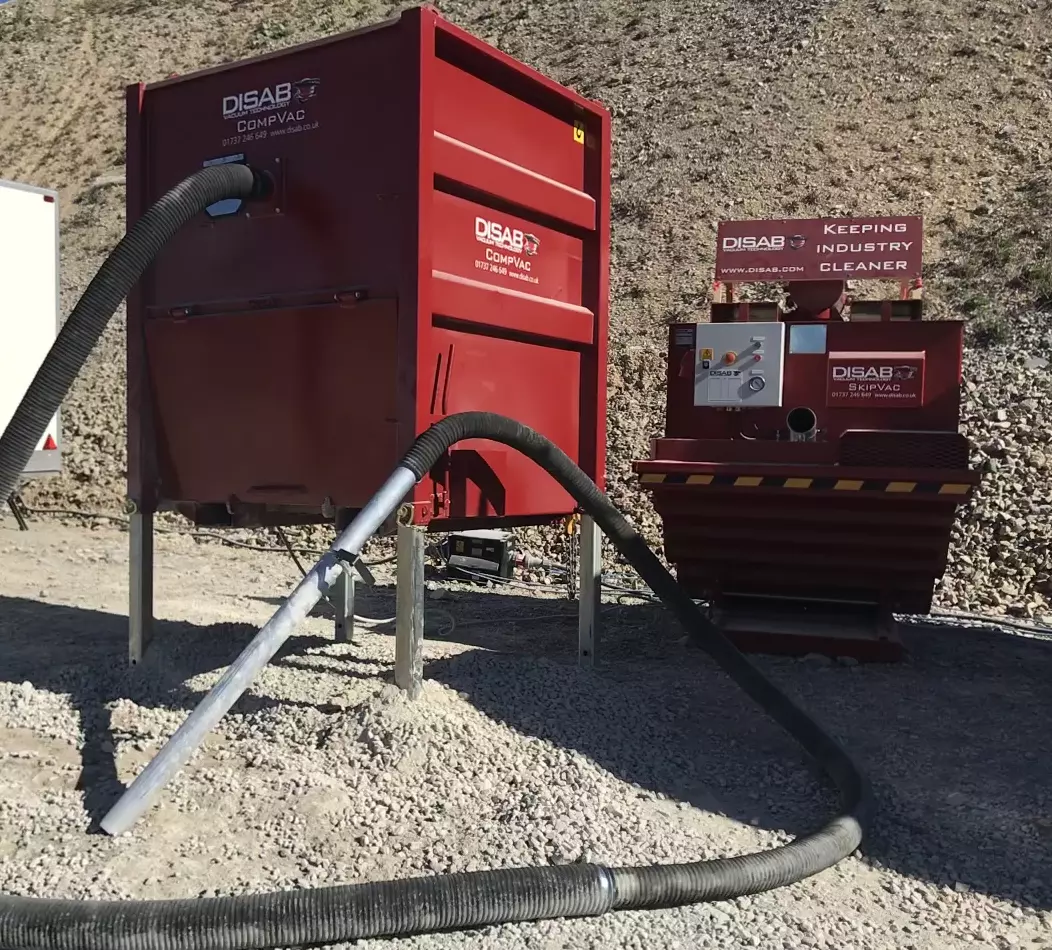

CompVac is a semi-mobile, electrical powered vacuum unit mounted on a rigid stand equipped with retractable legs. It is designed for applications requiring collection of material into an open skip or container. It can easily be manoeuvred using a standard forklift truck or crane. Suitable for temporary cleaning needs in any industrial application. Oil-free. Self-cleaning filter.
Get in contactQuick facts
- Emptying
- Suction
- ATEX
- Damp material
- Dry material
- Wet material
- Max Vacuum 800 mBar
- Diesel Motor 55 kW
- Max Air Volume 3200 m³/h
Weight and Dimensions
| Complete unit | 1,030kg |
| Total Unit Lengths | 1,430mm |
| Total width | 1,430mm |
| Height | 2,955mm |
Overview
| Suction | Dry Materials | ||
| Blow | Wet materials | ||
| Mobile | Indoor | ||
| Power | 16.5 kW | Outdoor |
Technical Information
| Discharge | Into any type of open skip or container |
| Vacuum Pump | Oil-free side channel blower |
| Max Vacuum | 400 mbar |
| Suction Inlet | 108mm |
| Air Volume | 1,100 |
| Power | 16.5 kW |
| Voltage Frequency | 32 amp / 415 V |
| Material Container Volume | 0.9m3 |
| Power Source | Electric |
| Container Tipping | 0.9m3 manual discharge hopper |
| Standard Filter Class | L, M, IEC. HEPA optional. Self-cleaning. |
| Safety Filter Surface | 10m2 |
| ATEX | Optional |
| IECEx | N/A |
