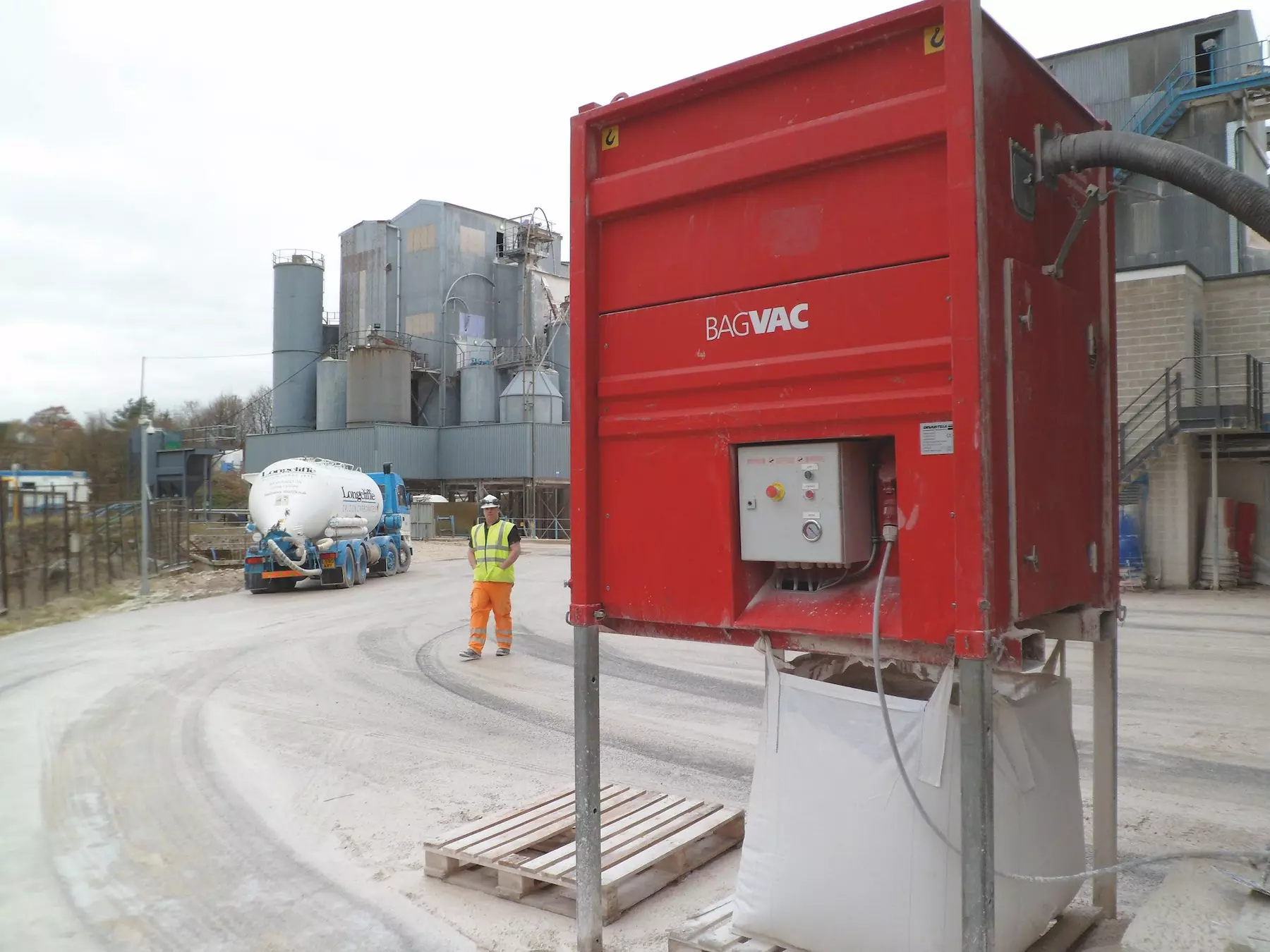

Big-bag collection ideal for recycling or bagging


BagVac is a semi-mobile, electrical powered vacuum unit mounted on a rigid stand equipped with retractable legs. It is easily manoeuvred using a standard forklift truck or crane. As it is designed and equipped with an outlet for big-bag collection, it is also frequently used for recycled material or that needs to be packed into bags. Suitable for temporary cleaning needs in any industrial application. Oil-free. Self-cleaning filter.



Get in contact

Quick facts

  • Emptying
  • Suction
  • ATEX
  • Damp material
  • Dry material
  • Wet material
  • Max Vacuum 800 mBar
  • Diesel Motor 55 kW
  • Max Air Volume 3200 m³/h
Get in contact
BagVac

Weight and Dimensions

Complete unit 1,130kg
Total Unit Lengths 1,430mm
Total width 1,650mm
Height 3,480mm

Overview

Suction Dry Materials
Blow Wet materials
Mobile Indoor
Power 16.5 / 25 kW Outdoor

Overview

Technical Information

Discharge Bulka bag skip or channel to specific bag
Vacuum Pump Oil-free side channel blower
Max Vacuum 400 mbar
Suction Inlet 108mm
Air Volume 1,100
Power 16.5 / 25 kW
Voltage Frequency 32/63 amp / 415 V
Material Container Volume 0.4m3
Power Source Electric
Container Tipping 0.4m3 self discharging hopper
Standard Filter Class L, M, IEC. HEPA optional. Self-cleaning.
Safety Filter Surface 10m2
ATEX Optional
IECEx N/A
